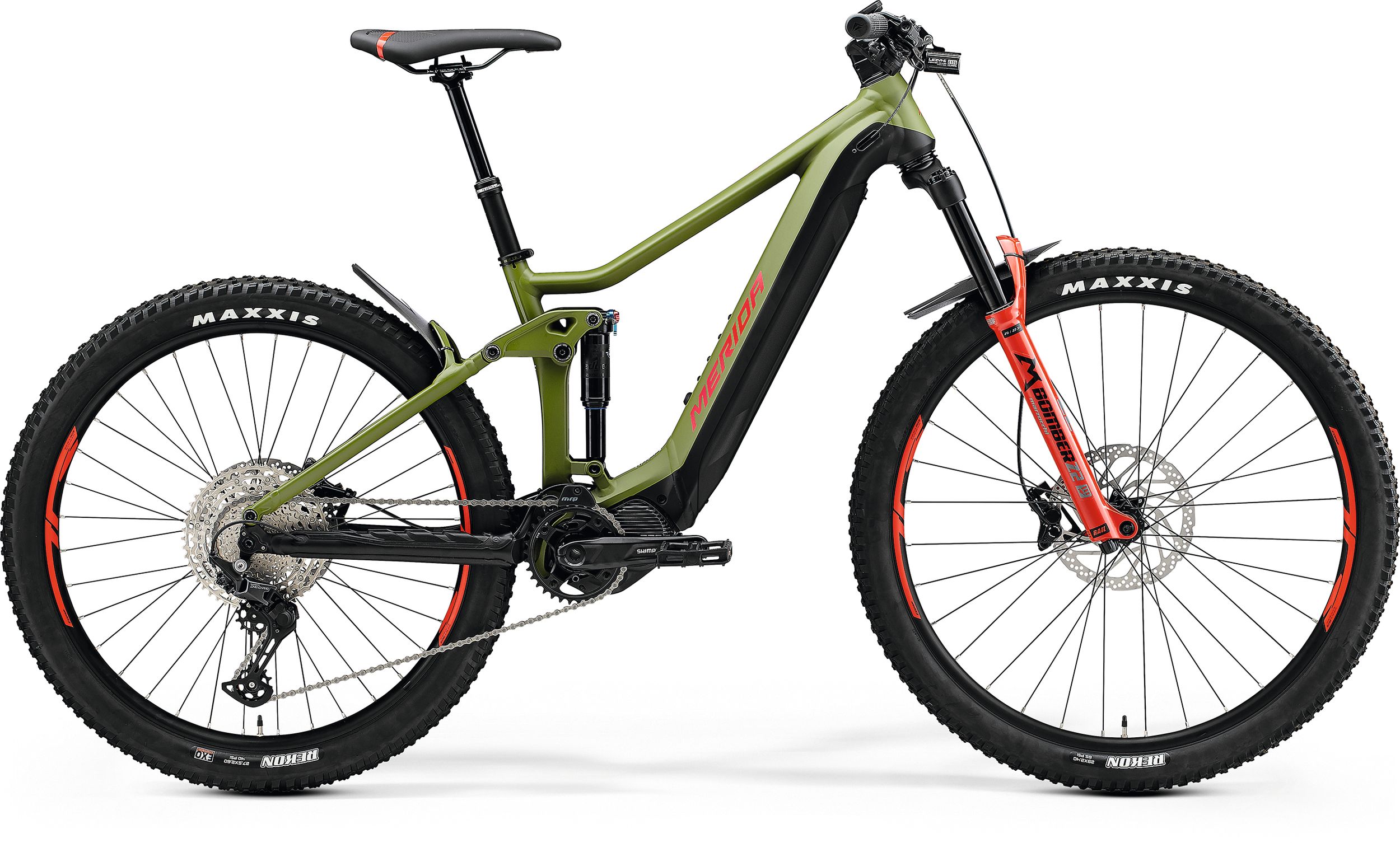

Merida eONE-FORTY 500
Kun i str. Small
Veil pris kr: 59.999,-
Tilbud kr: 39.500.-
SHIMANO’S EP8
Comes equipped with the new EP8 motor from Shimano STePS. It offers an increased performance of 85 Nm, less weight, a further reduction in size and less friction. On top of that, the new internal battery offers an extended range and super-fast charging capabilities.
| RAMMESTØRRELSE | S | M | L | XL | XXL |
| DEKKSTØRRELSE | 29/27.5″ | 29/27.5″ | 29/27.5″ | 29/27.5″ | 29/27.5″ |
| RAMMESTØRRELSE CM | 41 | 42 | 43 | 45 | 47 |
| ST – SEAT TUBES (MM) | 405 | 415 | 430 | 450 | 470 |
| TT – TOP TUBE (MM) | 561 | 581 | 603 | 624 | 645 |
| CS – CHAIN STAYS (MM) | 439.5 | 439.5 | 439.5 | 439.5 | 439.5 |
| HTA – HEAD TUBE ANGLES (°) | 66.5 | 66.5 | 66.5 | 66.5 | 66.5 |
| STA – SEAT TUBE ANGLE (°) | 76.5 | 76.5 | 76.5 | 76.5 | 76.5 |
| BD – BOTTOM BRACKET DROPS (MM) | 25 | 25 | 25 | 25 | 25 |
| HT – HEAD TUBE LENGTH (MM) | 110 | 115 | 120 | 125 | 130 |
| FL – FORK LENGTH (MM) | 551 | 551 | 551 | 551 | 551 |
| R – REACH (MM) | 410 | 430 | 450 | 469 | 489 |
| S – STACK (MM) | 622 | 627 | 631 | 635 | 640 |
| WB – WHEEL BASE (MM) | 1160 | 1182 | 1204 | 1226 | 1248 |
| SH – STAND OVER HEIGHT (MM) | 729 | 730 | 727 | 733 | 747 |
RAMME eONE-FORTY LITE III
RAMMESTØRRELSE S, M, L, XL, XXL
FARGE MATT GREEN/BLACK (RACE RED)
GAFFEL Marzocchi Z2 eMTB+
BAKDEMPER SR Suntour EDGE
FRAMBREMS Shimano M4100
BAKBREMS Shimano M4100
STYRELAGER MERIDA 8152
STYRE MERIDA EXPERT eTR
STYRESTEM MERIDA EXPERT eTRII
HOLKER / STYRETAPE MERIDA EXPERT EC
BAKGIR Shimano Deore RDM5100 11
FREMRE GIRHENDEL Shimano SL -MT500-IL
BAKRE GIRHENDEL Shimano Deore M5100
SADELPINNE MERIDA COMP TR
SADELKLEMME MERIDA EXPERT
SADEL MERIDA COMP SL
PEDAL VP VPE-537
KJEDE KMC e11S EPT
KJEDEDREV Shimano CRE70-B
KASSETT Shimano M5100
FELG MERIDA COMP TR
FRAMDEKK Maxxis Rekon
BAKDEKK Maxxis Rekon
NAV FRONT Shimano MT400-B
NAV BAK Shimano MT400-B
BAKAKSLING MERIDA EXPERT TR
BREMSESKIVE FRONT Shimano RT30
BREMSESKIVE BAK Shimano RTEM300
EIKER Black stainless
LYS Lezyne E-Bike Power E115 / Dlight CG-214RG
SKJERMER C093-02F + C093-02R
MOTOR Shimano EP8
BATTERI Shimano E8036 630Wh / Shimano E8035 504Wh for S only
DISPLAY Shimano SC-E5003A
KRANK Shimano FCEM600
KJEDEFØRER OTSP41S
